Combining the easy handling of a bicycle with the safety and stability of three wheels, the innovative Trike Cargo Hybrid 1500 is part of our contribution to a cleaner urban environment. Fourth generation Bosch CX Line drive is powered by twin 750Wh batteries, for a total of 1500Wh – meaning extended range. The unique tilting mechanism de-couples the load at the rear from the bike at the front, giving a natural feel to cornering. At the rear, the lightweight and tough cargo box is waterproof and lockable – the ideal way to transport just about anything across town, up to a load of 50kg. There's even a storage compartment in the main frame, and the option to fit a front rack. With a short wheelbase, easy handling and tight turning circle all designed to beat the urban traffic and make parking easy, the future's looking brighter already. |
Battery |
Wheels |
1500 Wh |
24" / 20"
|
Frame
Frame |
Aluminium Gravity Casting, Comfort Ride Geometry, Tilting Technology, Downtube Storage |
Size |
One Size |
Suspension
Suspension Fork |
SR Suntour MOBIE 34 CARGO 24", 100mm |
E-bike system
DRIVE UNIT | REMOTE | BATTERY | CHARGER |
Bosch Drive Unit Cargo Line Generation 4 (85Nm) Cruise (250Watt), Smart System
|
Bosch LED Remote |
Bosch PowerTube 750 Axial + Bosch PowerTube 750 Axial |
Bosch Kiox 300 |
Drivetrain & Brakes
Brake system |
Tektro Auriga Twin+ HD-E745 with parking lock mechanism (180/160) |
Shifters |
Enviolo Cargo manual |
Crankset |
ACID E-Crank, 170mm, 42T |
Cassette |
KMC 3mm, 18T |
Chain |
KMC e101 EPT |

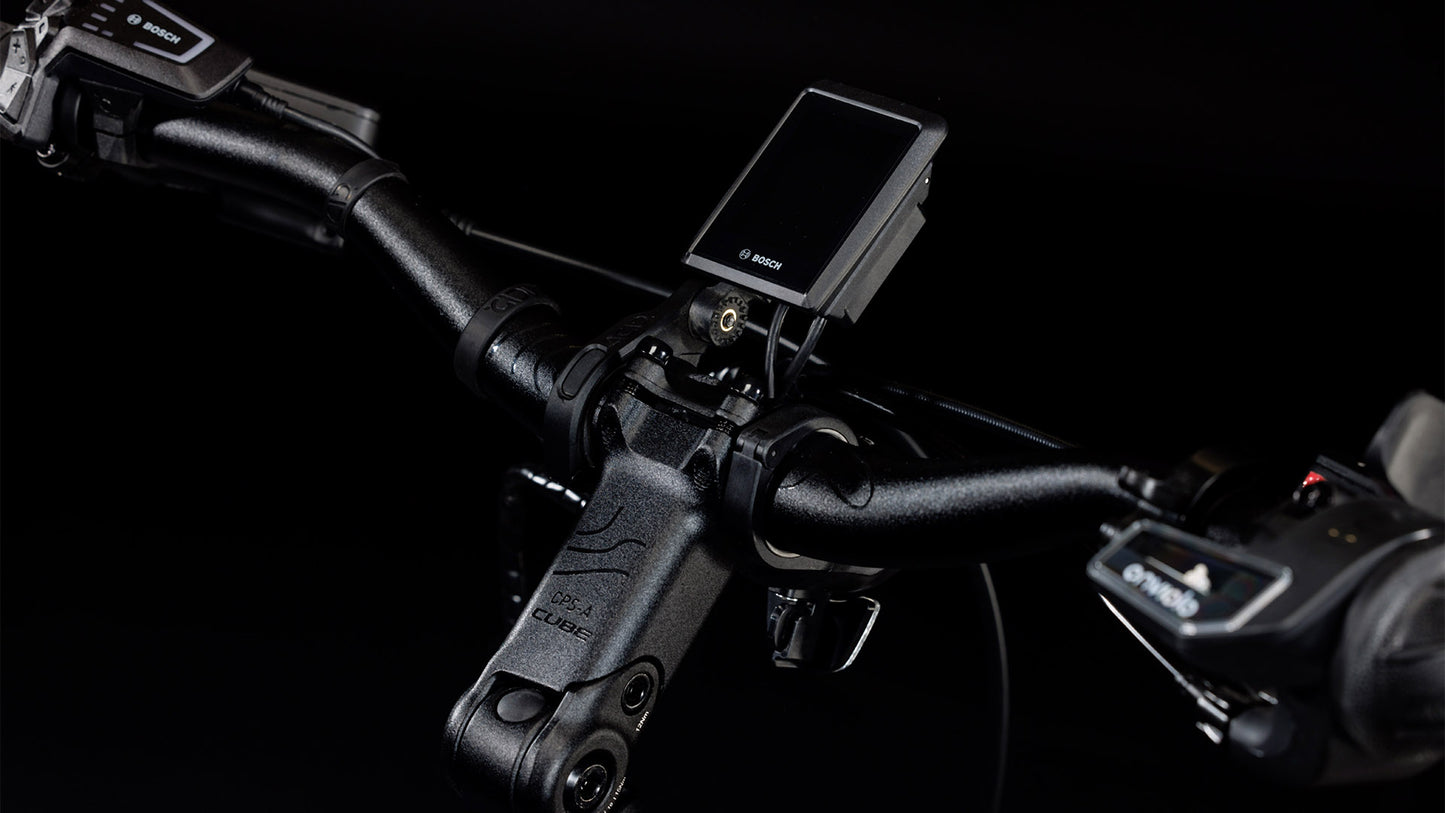

Cockpit
Headset |
ACROS Carrier Mount Headset |
Stem |
Cube Comfort Stem Pro, 31.8mm, Adjustable |
Handlebar |
CUBE Comfort Trail Bar, 700mm |
Grips |
ACID Travel Comfort Gripshift |
Wheels
Rims |
CUBE EX40, 507 x 36H / 406 x 32H, DISC, Tubeless Ready |
Front hub |
Cube Cargo Hub, 36H, Straightpull, 110x15mm Boost |
Rear hub |
Cube Trike Hub, Straightpull |
Front tyre |
Schwalbe Pick-Up, Super Defense, 65-507 |
Rear tyre |
Schwalbe Pick-Up, Super Defense, 65-406 |
Finishing Kit
Saddle |
Natural Fit Sequence Comfort |
Seat post |
Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost |
Pedals |
CUBE PP MTB |
Front light |
ACID Front Light PRO-E 110, 5-16V, DC |
Rear light |
Supernova T-M99 |
Kickstand |
Ursus XXS |
Mudguards |
ACID 75 |
Bell |
Ring Bell |
Extras |
Bosch ConnectModule |
Product Information
Colour |
grey´n´reflex |
Weight |
70kg |
