What good is a go-anywhere, ride-all-day, Bosch-powered bike without power? Not much, which is why every frame size of the Stereo Hybrid 140 HPC, right down to the smallest, accepts a 750Wh battery. Combined with up to 85Nm from the Bosch CX drive unit, it's your ticket to extended off-road adventures. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel. Sram's UDH gear hanger helps protect against crash damage and is easily replaceable. And Internal Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame. |
Frame Material |
Battery |
| HPC |
750 Wh
|
Frame
|
Frame |
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing |
| Size |
Size Split: 27.5: S // 29: M L XL |
Suspension
Suspension fork |
RockShox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 150mm, Lockout |
Shock |
RockShox Deluxe Select, 205x60mm (27.5: 185x55mm), Rebound Adjust, Trunnion Mount |
Shock hardware |
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm |
E-bike system
| DRIVE UNIT | REMOTE | BATTERY | CHARGER |
 |
 |
 |
 |
|
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
|
Bosch LED Remote |
Bosch PowerTube 750 |
Bosch 2A |
Drivetrain & Brakes
Brake system |
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
Rear derailleur |
Shimano Deore RD-M5100-SGS, 11-Speed |
Shifters |
Shimano Deore SL-M5100, Rapidfire-Plus |
Crankset |
ACID E-Crank, 165mm (27.5: 36T // 29: 34T) |
Cassette |
Shimano Deore CS-M5100, 11-51T |
Chain |
KMC X11 |
Chain guide |
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4 |
Cockpit
Headset |
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem |
CUBE Performance Stem E-MTB, 31.8mm |
Handlebar |
Newmen Evolution SL 318.25, 760mm |
Grips |
ACID React Pro |
Wheels
Rims |
Rodi Tryp 30, 32H, Disc, Tubeless Ready |
Front hub |
Shimano HB-MT400-B, 15mm, Boost, Centerlock |
Rear hub |
Shimano FH-MT400-B, 12mm, Boost, Centerlock |
Tyres |
Schwalbe Nobby Nic, PerfL, 2.6 |
Finishing Kit

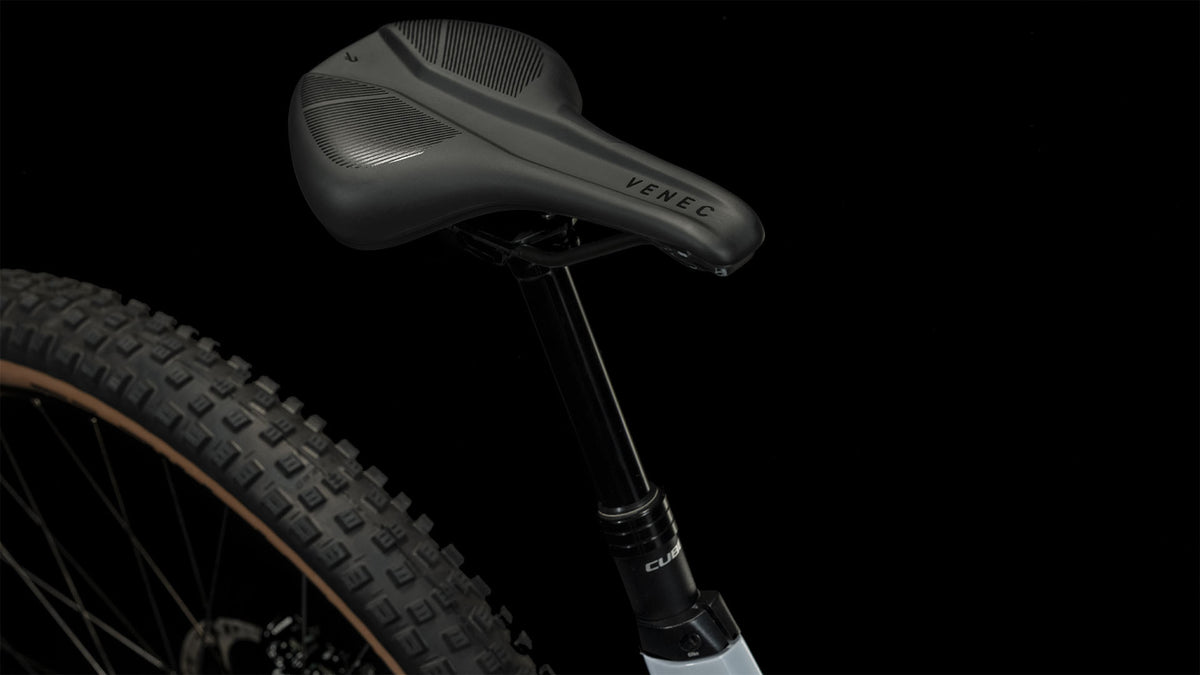

Saddle |
Natural Fit Venec |
Seat post |
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
Product Information
Colour |
black´n´orange, swampgrey´n´black, vivid´n´sun |
Weight |
24,5 kg |
