THE
|

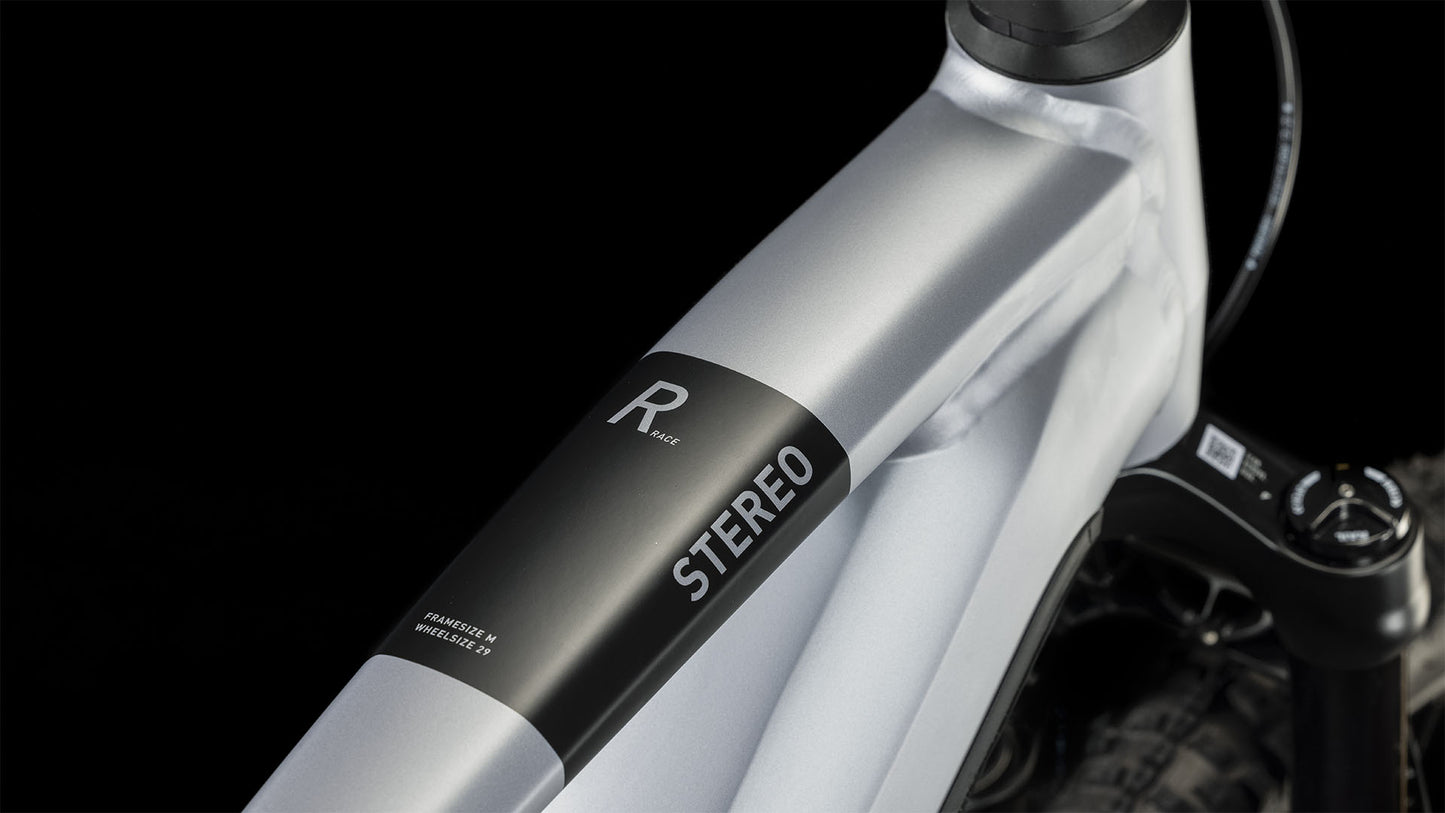

The Stereo Hybrid's sleek frame is full of clever touches to make our popular, Bosch-powered trail explorer better than ever. The Modular Battery System tucks the Bosch battery out of sight, and out of the way of dust and water. Internal cable routing isn't just neat, it also means there are no cable holes in the head tube. The refined four-bar suspension system keeps you isolated from trail shocks for ride-all-day comfort, and the whole lot is wrapped in our Comfort Geometry – with a stiffness-enhancing Boost 148 rear end and 1.5in head tube – for easy handling, plus SizeSplit makes it simple for every rider to find their perfect match. We even made it simple to add accessories like mudguards, a luggage carrier and a kickstand. It's ready for pretty much anything. Are you? |
| Frame Material |
Battery |
| Aluminium Superlite |
750 Wh
|
Frame
|
Frame |
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
| Size |
Size Split: 27.5: S // 29: M L XL |
Suspension
Suspension fork |
Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm |
Shock |
Fox Float DPS EVOL, 185x55mm (27.5: 165x45mm), Open/Medium/Firm Mode, Trunnion Mount |
Shock hardware |
Top: 54mm Trunnion Mount, Bottom: 30x8mm |
E-bike system
| DRIVE UNIT | REMOTE | BATTERY | CHARGER |
 |
 |
 |
 |
|
Bosch Drive Unit Performance Generation (85Nm) Cruise (250Watt), Smart System
|
Bosch LED Remote |
Bosch PowerTube 750 |
Bosch Intuvia 100 |
Drivetrain & Brakes
Brake system |
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
Rear derailleur |
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
Shifters |
Shimano Deore SL-M6100, Rapidfire-Plus |
Crankset |
ACID E-Crank, 38T, 170mm |
Cassette |
Shimano Deore CS-M6100, 10-51T |
Chain |
Shimano CN-M6100 |
Cockpit
Headset |
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Stem |
CUBE Performance Stem E-MTB, 31.8mm |
Handlebar |
Newmen Evolution SL 318.25, 760mm |
Grips |
ACID Hybrid Perform |
Wheels
Rims |
CUBE EX30, 32H, Disc, Tubeless Ready |
Front hub |
Shimano HB-MT400-B, 15mm, Boost, Centerlock |
Rear hub |
Shimano FH-MT410-B, 12mm, Boost, Centerlock |
Tyres |
Schwalbe Smart Sam, Active, 2.6 |
Finishing Kit
Saddle |
Natural Fit Sequence |
Seat post |
CUBE Performance Post, 30.9mm |
Pedals |
ACID PP MTB |
Product Information
Colour |
polarsilver´n´black |
Weight |
25,6 kg |
