CROSS-COUNTRY
|

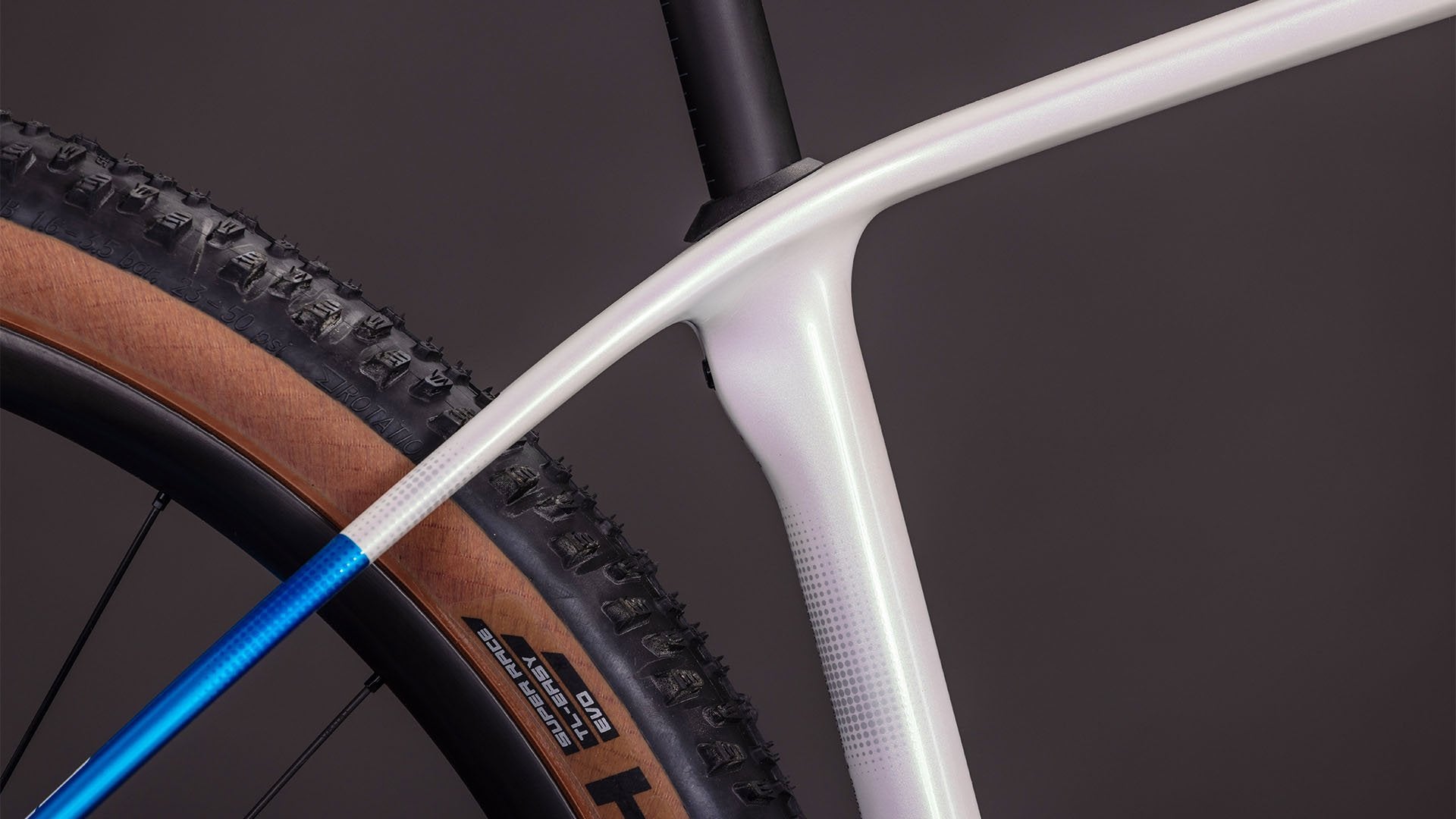

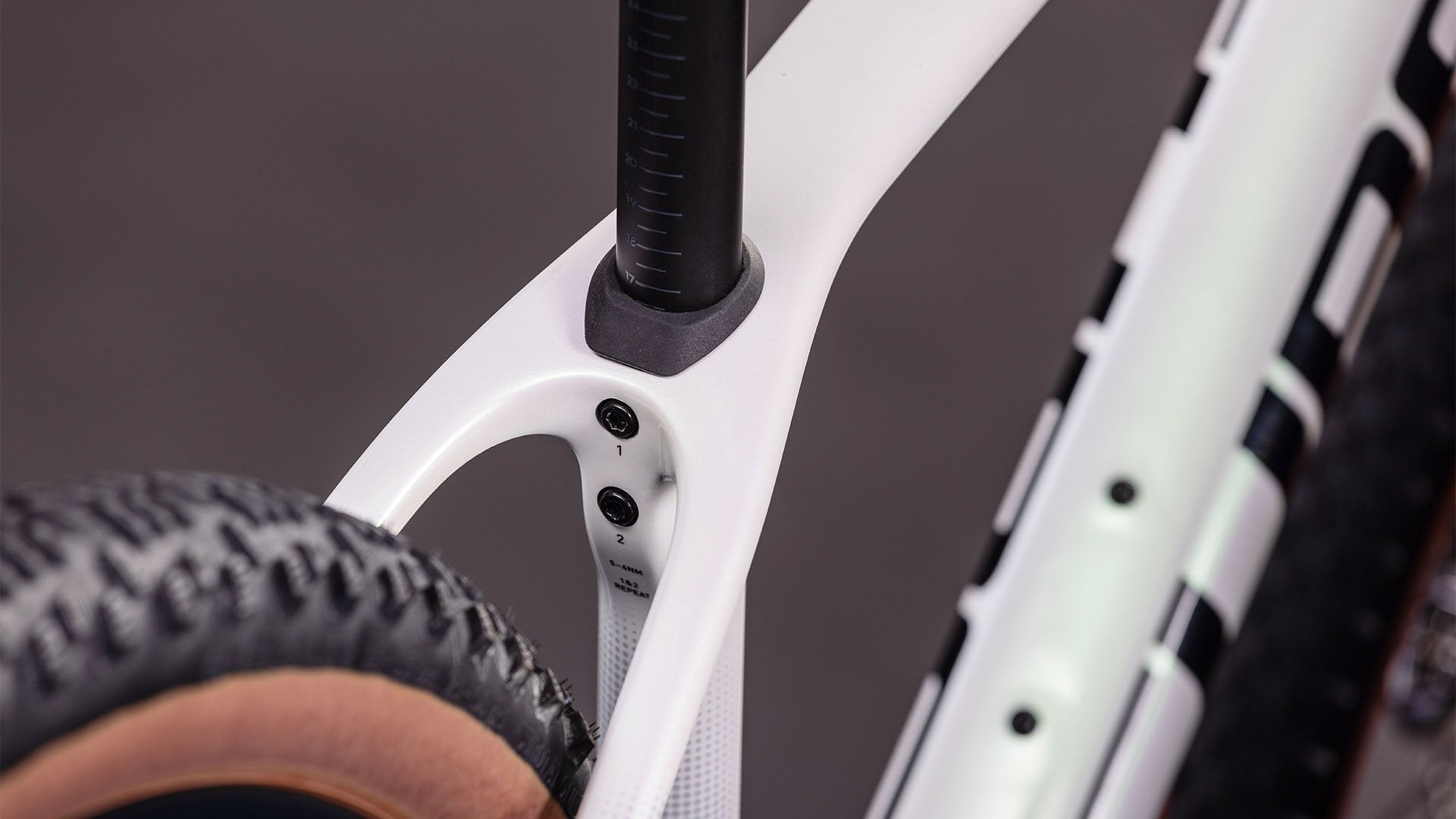

We know a thing or two about making fast cross-country race frames, but the new Phenix C:68X moves the bar even higher. How? For starters, we used our premium C:68X® carbon for the ultimate in low weight, high strength and ride comfort. We redesigned the seat tube junction to incorporate an integrated seat clamp. It's a small touch, but – along with internal cable routing – it complements the frame's clean aesthetic and elegant, organic lines. And there's an adjustable angle headset, so you can tweak your bike's handling to suit your own taste. |
| Frame Material | Frame Weight | Boost |
| C:68X® | < 900 g | C:68X® |
Frame
| Frame | C:68X® Monocoque Advanced Twin Mold Technology, Boost 12x148mm, Full Internal Cable Routing, Dropper Post ready, UDH™ |
| Size | 29: S, M, L , XL |
Suspension

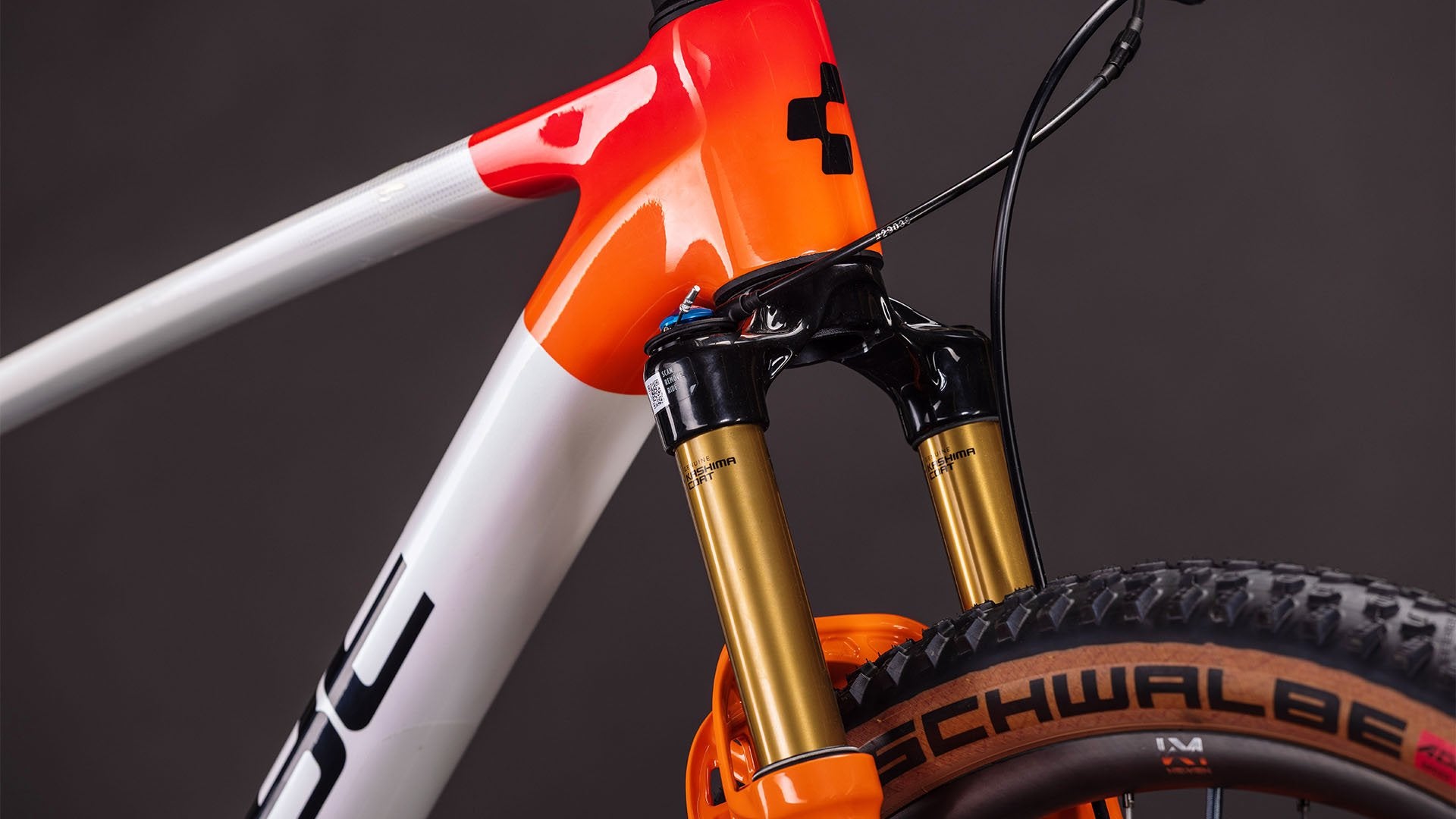

| Suspension Fork | RockShox SID SL Ultimate, Tapered, 15x110mm, 100mm, OneLoc |
Drivetrain & Brakes
| Brake System | Magura MT8 Pro PM, Hydr. Disc Brake (160/180) |

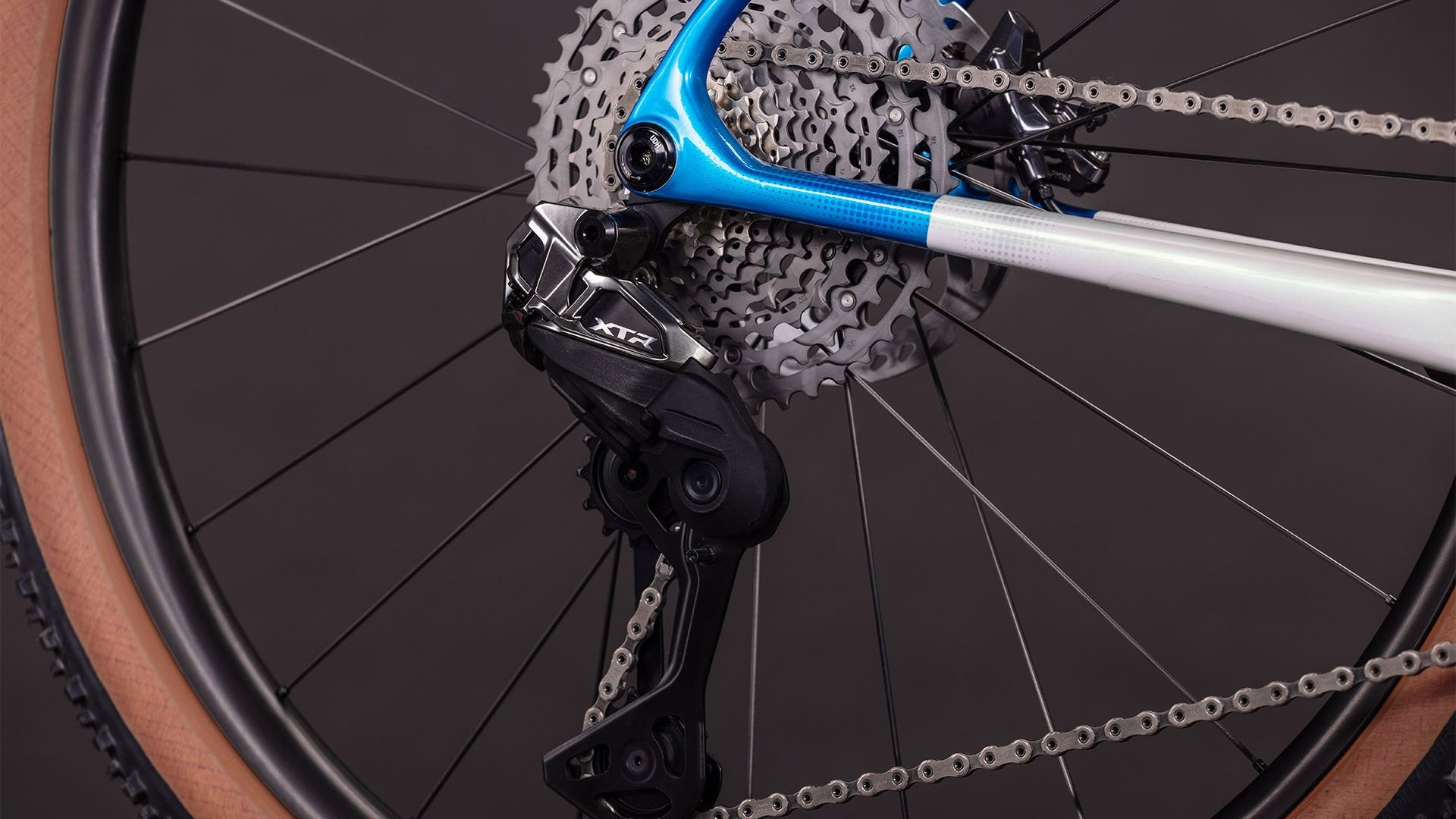

| Rear Derailleur | Sram X0 Eagle AXS™ Transmission, 12-Speed |
| Shifters | Sram AXS™ Pod Ultimate Controller |
| Bottom Bracket | Sram DUB MTB Wide, 92mm Pressfit |

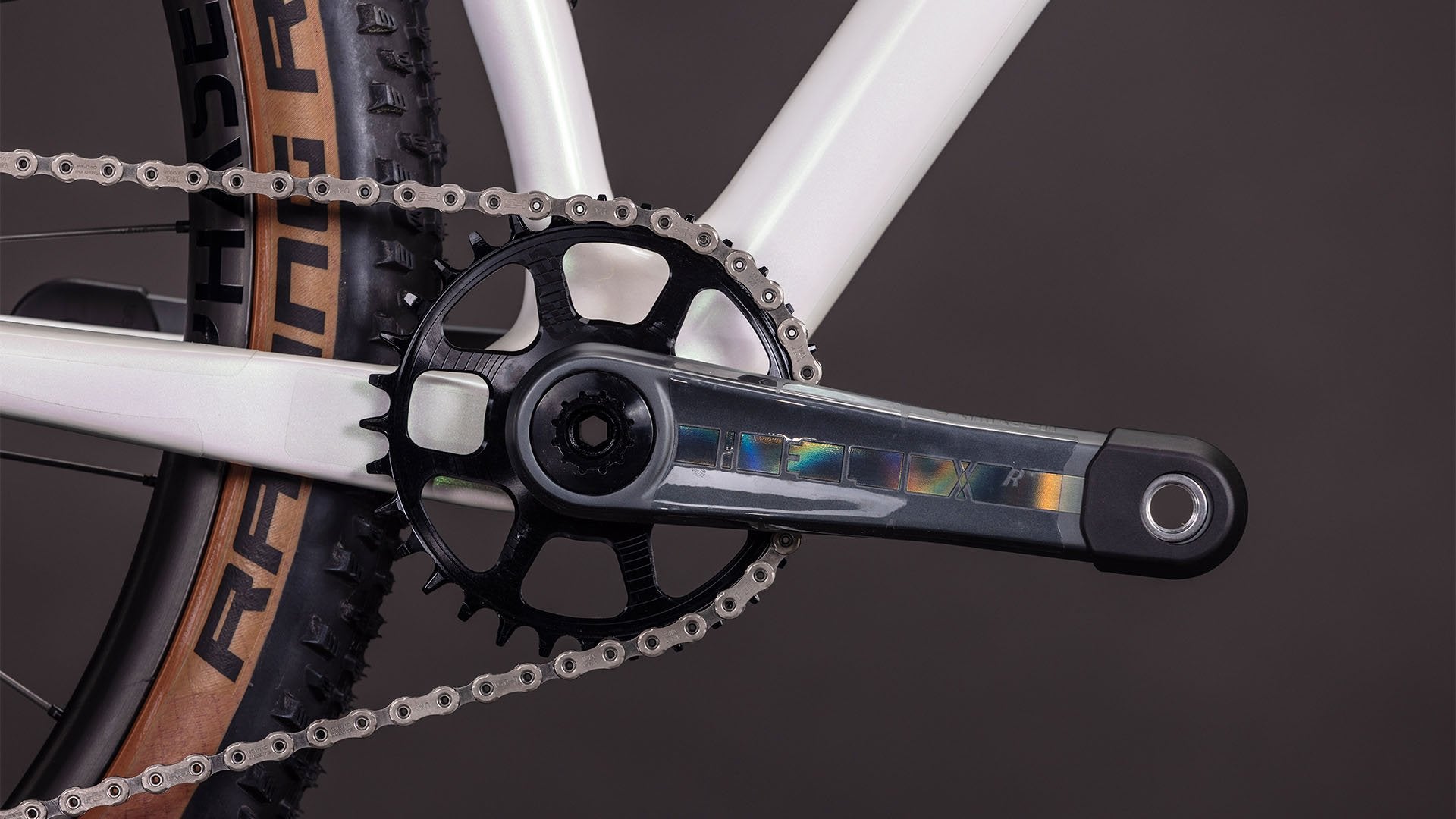

| Crankset | Sram XX SL Eagle™ Transmission DUB, 34T |
| Cassette | Sram XS-1295, 10-52T |
| Chain | Sram X0 Eagle™ Transmission |
Cockpit
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Integrated Bar/ Stem | CUBE Phenix Carbon Cockpit System |
| Grips | ACID React Pro |
Wheels
|
Wheelset |
Newmen Advanced SL X.A.30 Carbon, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre |
Schwalbe Racing Ray, Super Race, Addix Speed, Kevlar, 2.25 |
| Rear Tyre |
Schwalbe Racing Ralph, Super Race, Addix Speed, Kevlar, 2.25 |
Finishing Kit
| Saddle | Natural Fit Nuance SL |
| Seat Post |
Newmen Advanced Custom, Carbon, 27.2mm |
| Extras |
Schwalbe Aerothan™ Inner Tubes |
Product Information
| Colour | teamline |
| Weight | 8,9 kg |
| ArtNo | 845500 |
