CROSS-COUNTRY EXCELLENCE |

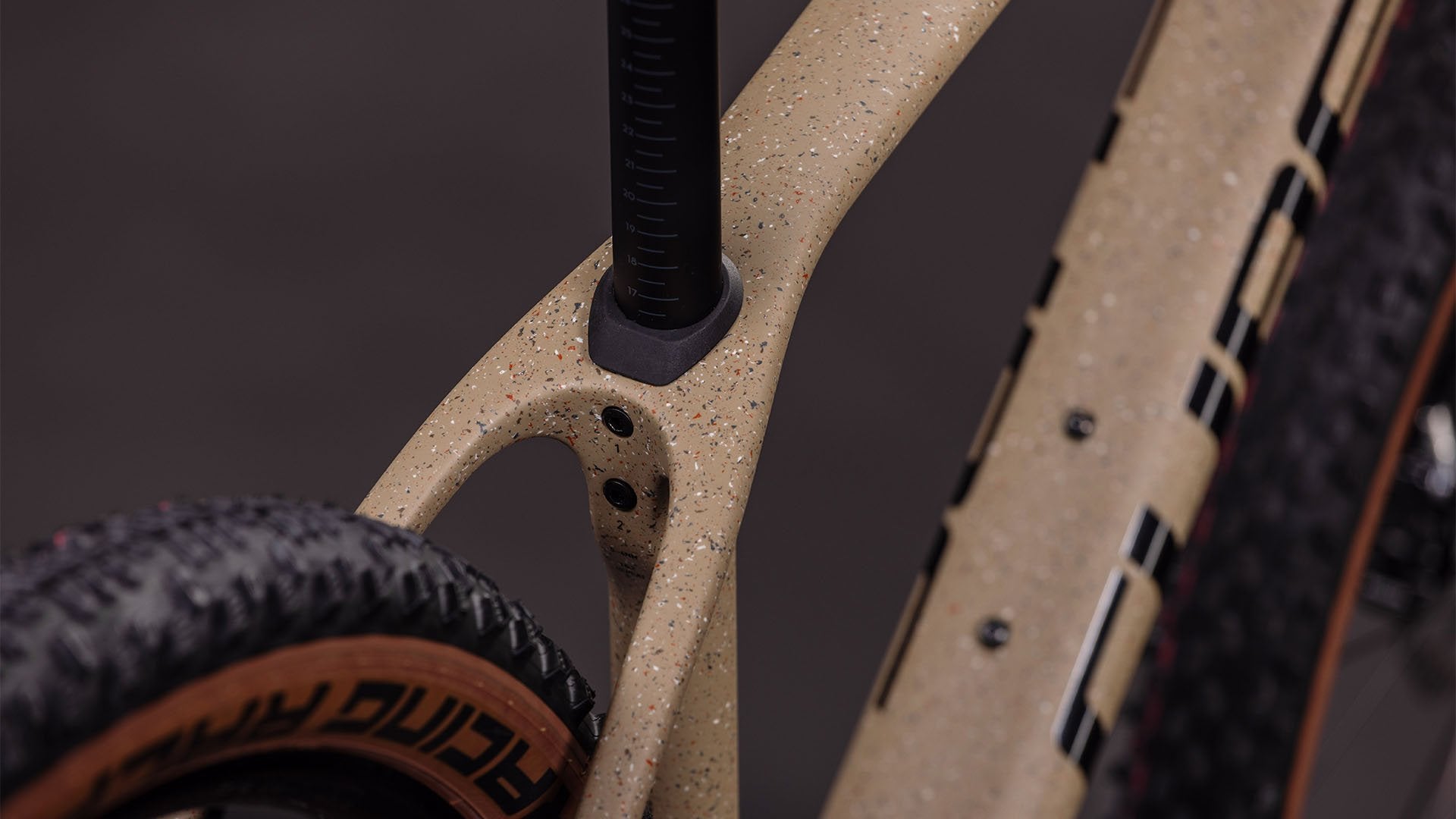

There's a good reason for the Reaction C:62's beautifully organic lines and slender stays: it makes for an exceptionally fast, light frame. Our premium C:62® carbon and Advanced Twin Mold manufacturing is just the start. There's an integrated seat clamp, for secure fastening and the neatest possible appearance. Semi-integrated cable routing complements the frame's clean aesthetic and reduces the need for maintenance. UDH means it's future-proof, while Agile Ride Geometry does exactly what you'd expect, delivering safe but responsive handling. And, with a wide range of sizes from S to XXL, there's one to suit practically any rider. |
| Frame Material |
| C:62® |
Frame
| Frame | C:62® Monocoque Advanced Twin Mold Technology, Boost 12x148mm, Full Internal Cable Routing, Dropper Post ready, UDH™ |
| Size | 29: S, M, L, XL, XXL |
Suspension

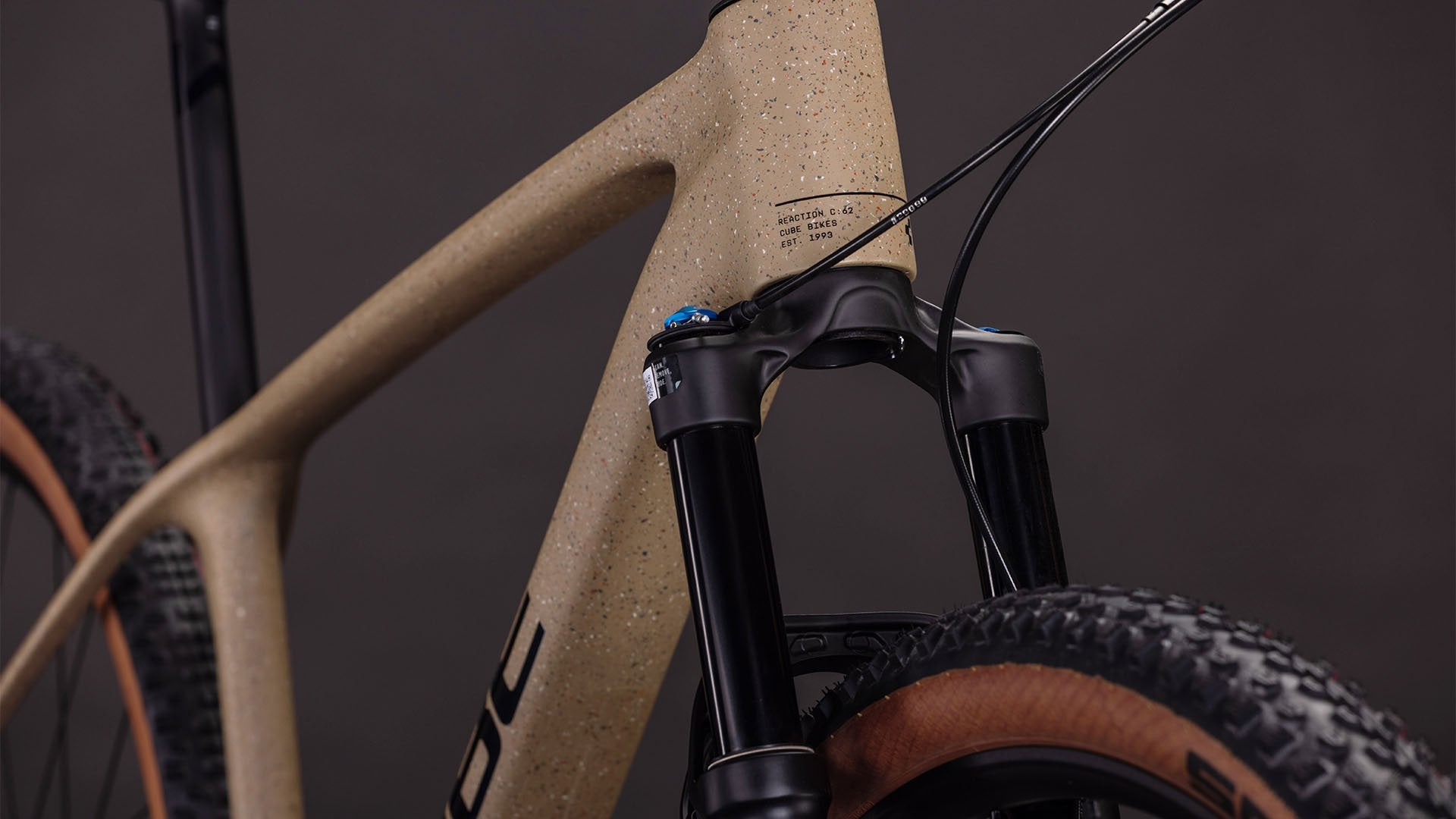

| Suspension Fork | Fox 32 SC Float Performance, 2-Position Remote, Tapered, 15x110mm, 100mm |
Drivetrain & Brakes
| Brake System | Magura MT8 Pro PM, Hydr. Disc Brake (160/180) |
| Rear Derailleur | Sram GX Eagle AXS™ Transmission, 12-Speed |
| Shifters | Sram AXS™ Pod Ultimate Controller |
| Bottom Bracket | Sram DUB MTB Wide, 92mm Pressfit |

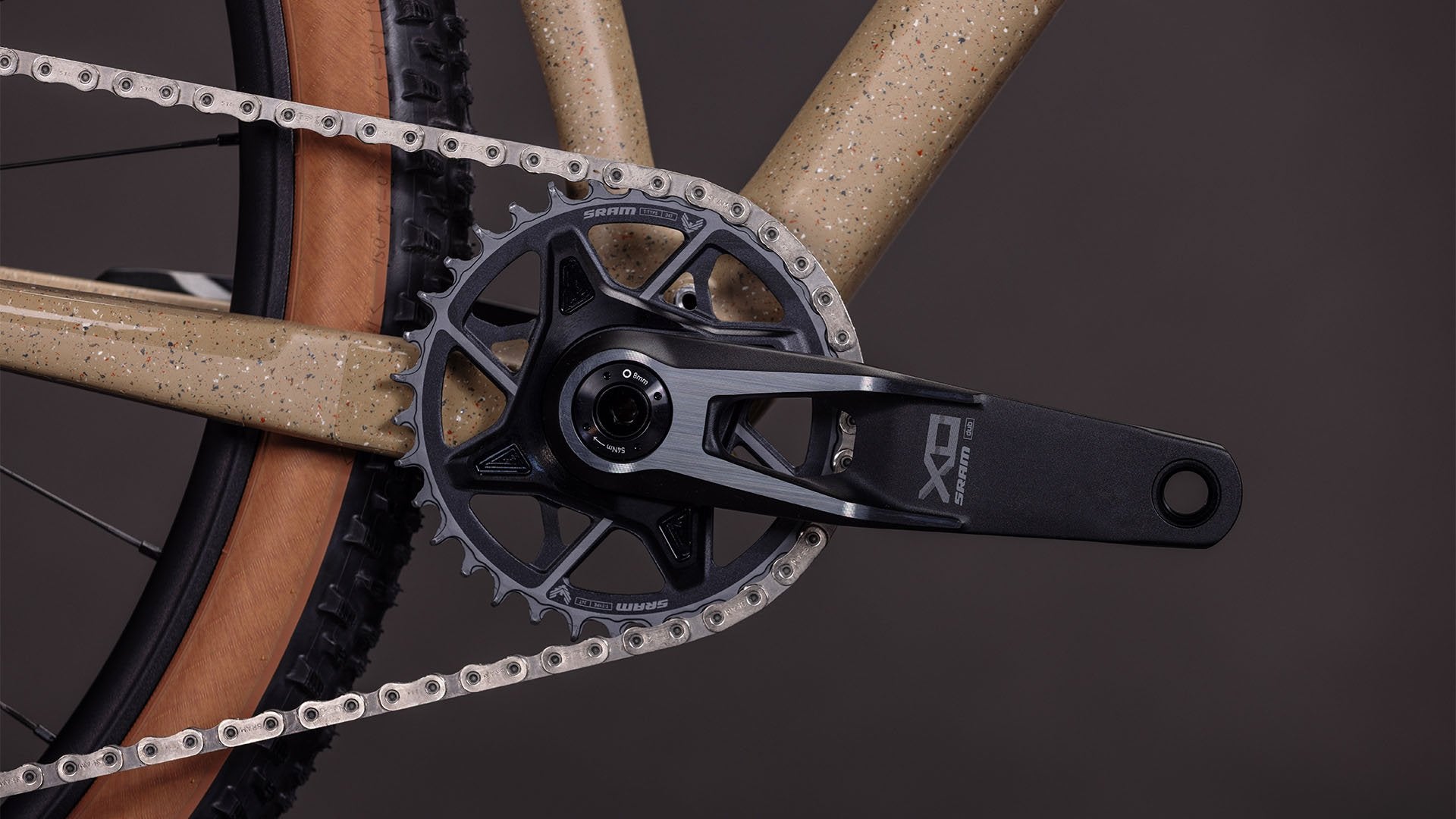

| Crankset | Sram X0 Eagle™ Transmission DUB, 34T |
| Cassette | Sram XS-1275, 10-52T |
| Chain | Sram GX Eagle™ Transmission |
Cockpit
| Headset | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Stem | Newmen Evolution 318.4, 31.8mm |
| Handlebar | Newmen Advanced 318.10, 760mm |
| Grips | ACID React Pro |
Wheels
|
Wheelset |
Newmen Beskar 30 light/light, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Front Tyre |
Schwalbe Racing Ray, Super Race, Addix Speed, Kevlar, 2.25 |
| Rear Tyre |
Schwalbe Racing Ralph, Super Race, Addix Speed, Kevlar, 2.25 |
Finishing Kit
| Saddle | ACID Nuance Pro |
| Seat Post |
Newmen Advanced Custom, Carbon, 27.2mm |
Product Information
| Colour | teamline |
| Weight | 9,9 kg |
| ArtNo | 845410 |
